a one quality nail making machine in MANIPUR

a one quality nail making machine in MANIPUR Specification

Phase
Three Phase

Torque
High torque induction motor

Shape
Rectangular Base, Vertical Mechanism

Diameter
1.0 mm - 6.0 mm

Product Type
A One Quality Nail Making Machine

General Use
Industrial Nail Production

Material
High Grade Cast Iron and Steel

Type
Z94 Mechanical Type

Capacity
Up to 350-450 nails per minute

Weight (kg)
Approximately 650-850 kg

Computerized
No

Automatic
Yes

Touch Screen
No

Control System
Manual and Semi-Automatic Controls

Surface Treatment
Powder Coated

QC System
ISO Certified Process

Tolerance
0.02 mm

Drawing
Available

Voltage
220V/380V, 50/60 Hz

Dimension (L*W*H)
Approx. 1600 x 900 x 1200 mm

Feature
Robust Construction, Low Maintenance, High Productivity

Color
Green/Blue

Min Nail Length
20 mm

Wire Feeding Mechanism
Continuous and adjustable

Production Speed
Variable as per nail size

Noise Level
Less than 78 dB

Safety Features
Emergency stop, Guarded moving parts

Lubrication System
Centralized automatic lubrication

Installation Requirement
Levelled hard surface, proper earthing

Application
Suitable for regular, wire, concrete, and coil nails

Operating Temperature Range
0°C to 40°C

Power Consumption
3-5 kW

Max Nail Length
150 mm

Cutting Die Material
Hardened Tool Steel

About a one quality nail making machine in MANIPUR

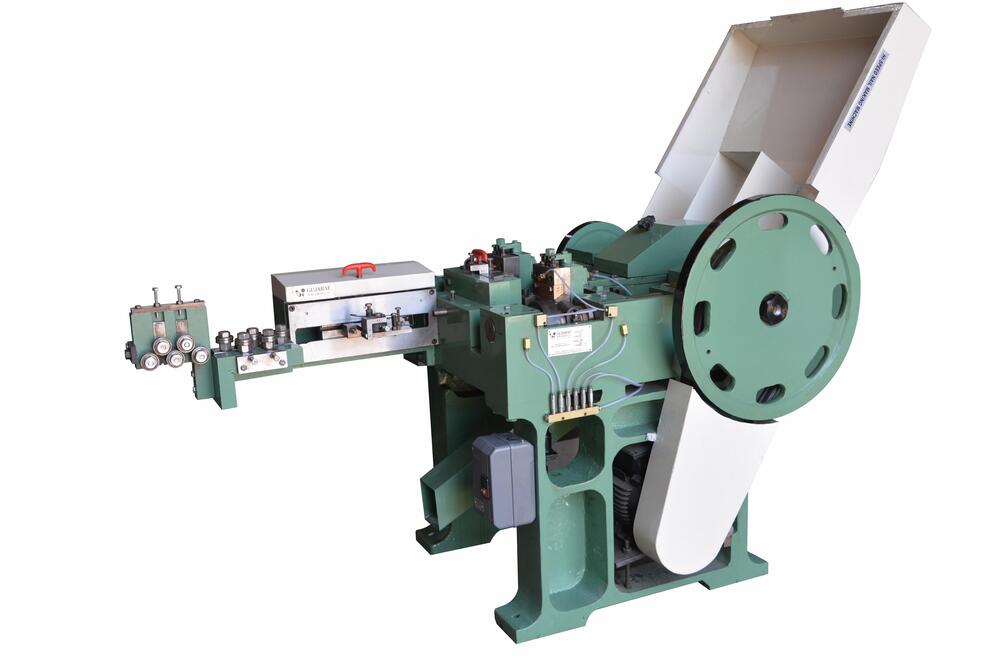

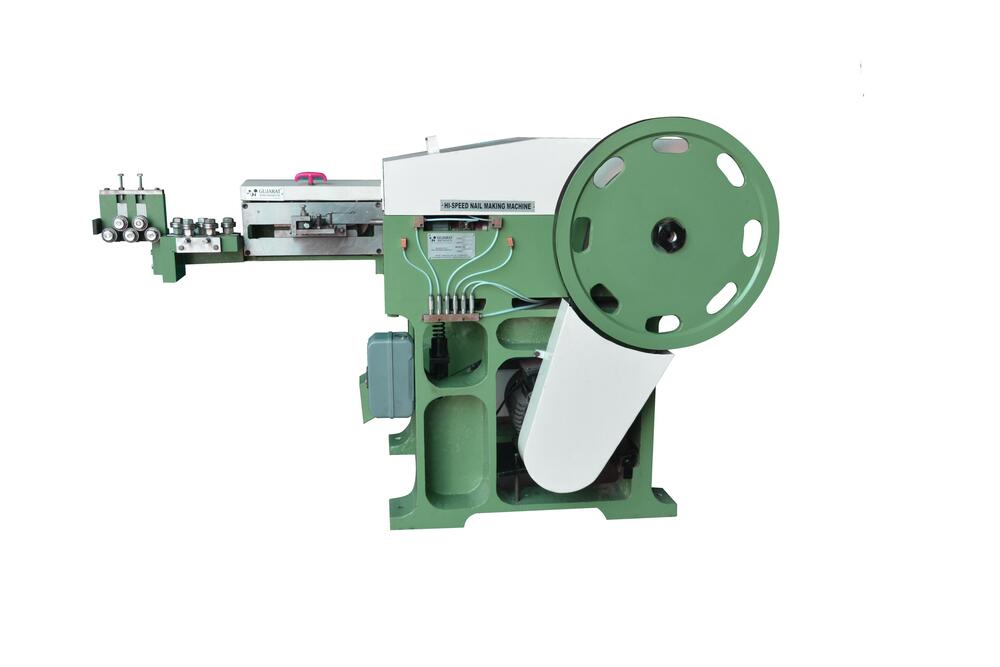

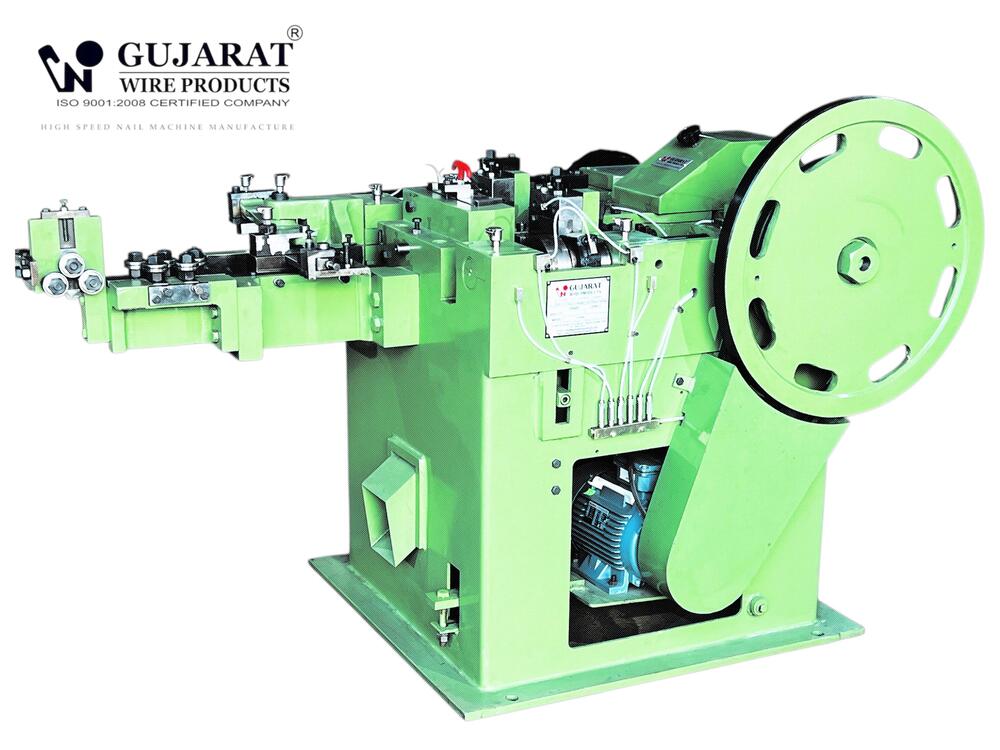

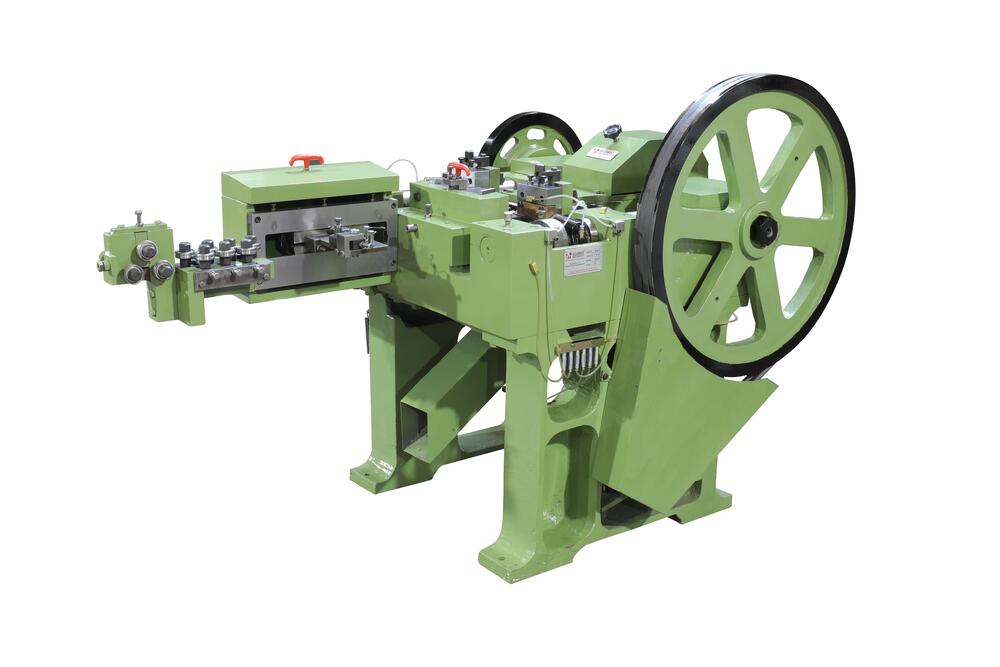

The Nails Manufacturing Machine from Gujarat Wire Products is a high-speed, precision-engineered machine designed for efficient nail production. It is built with durable components to ensure smooth operation and long-term reliability.Key Features: High-Speed Production: Capable of manufacturing a large volume of nails with minimal downtime. Durable Build: Made from high-quality materials for enhanced longevity and performance. Easy Operation: User-friendly design with simple controls for efficient operation. Low Maintenance: Engineered to reduce wear and tear, ensuring low maintenance costs. Versatile Application: Suitable for producing various nail sizes and types.Would you like specifications, pricing, or any additional details?

Superior performance & flexibility

Capable of producing up to 450 nails per minute, this machine accommodates various nail sizes and types including regular, wire, concrete, and coil nails. Its continuous, adjustable wire feed and high torque induction motor guarantee high productivity and consistent output.

Industrial-grade robustness & safety

Featuring a powder-coated, cast iron and steel structure, this nail making machine promises durability and reduced maintenance. Safety features such as an emergency stop button and guarded moving parts protect operators during intensive industrial production.

Automated lubrication & precision engineering

With a centralized automatic lubrication system, maintenance is simplified and machine longevity is enhanced. Precision-cutting dies of hardened tool steel, and a tight tolerance of 0.02 mm, assure uniform nail quality throughout the production process.

FAQ's of a one quality nail making machine in MANIPUR:

Q: How does the centralized automatic lubrication system work in this nail making machine?

A: The centralized automatic lubrication system ensures that all moving components receive continuous, even lubrication during operation. This reduces friction and wear, leading to longer machine life and minimal manual maintenance, ensuring uninterrupted production.

Q: What types of nails can be produced with this machine and what is the production process?

A: This machine is suitable for manufacturing regular, wire, concrete, and coil nails. The process involves feeding wire through an adjustable mechanism, cutting to the desired length (20-150 mm), and forming the nail with hardened steel dies for consistent shape and strength.

Q: When should the machine be operated for optimal performance and safety?

A: For best results, operate the machine within the recommended temperature range of 0C to 40C on a hardened, levelled surface with proper earthing. Routine checks and timely maintenance, especially of lubrication and cutting dies, ensure both safety and efficiency.

Q: Where is the ideal installation location for this nail making machine?

A: Install the machine in an industrial setting with a flat, hard flooring that can support approximately 650-850 kg. Ensure easy access to a power supply (220V/380V, 50/60 Hz), proper ventilation, and sufficient space for safe operation and maintenance.

Q: What are the safety benefits offered by this nail making machine?

A: The machine includes essential safety features such as an emergency stop button and guarded moving parts, effectively reducing accident risk. Its quiet operation (less than 78 dB) further enhances the workplace environment and operator comfort.

Q: How can the wire feeding mechanism be adjusted for different nail sizes?

A: The continuous and adjustable wire feeding system allows operators to set the feeding speed and wire diameter (1.0 mm-6.0 mm), easily accommodating various nail lengths (20-150 mm). This flexibility supports efficient production runs with minimal downtime.

Q: What makes this machine beneficial for industrial nail production in Manipur?

A: Its robust construction, high productivity (up to 450 nails per minute), and low maintenance requirements make it ideal for manufacturers, suppliers, traders, and wholesalers in Manipur. The machine's ISO certified QC process ensures consistently high-quality nails for industrial supply chains.
