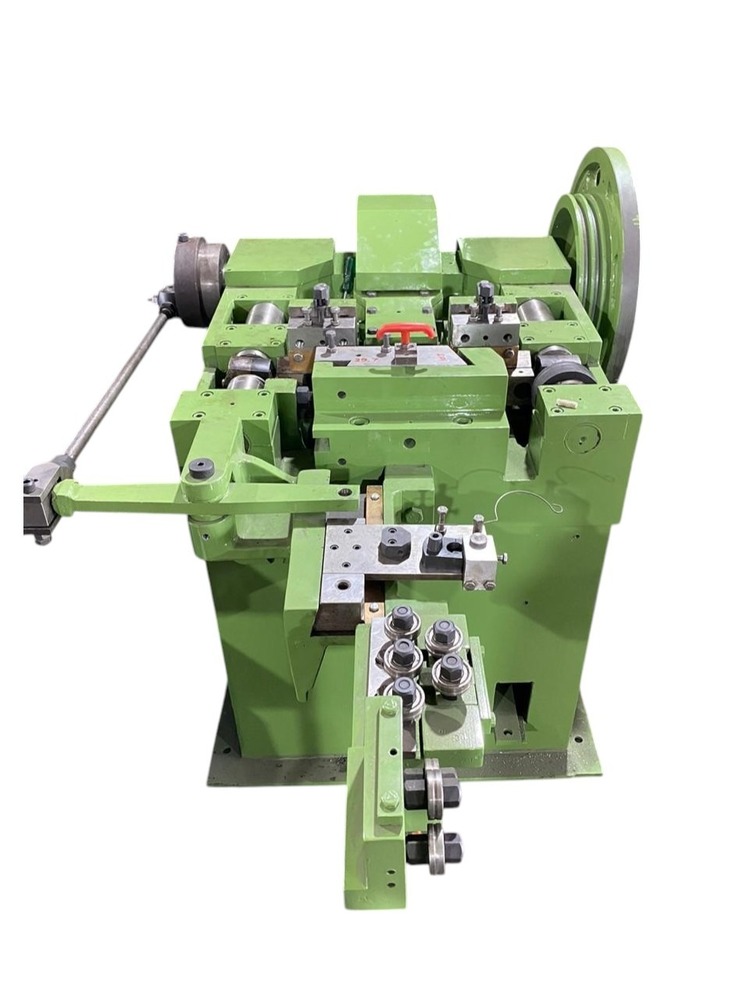

1 To 4 Inch Wire Nail Making Machine in Karnataka

1 To 4 Inch Wire Nail Making Machine in Karnataka Specification

Torque
High torque geared motor

Diameter
1 mm to 6 mm wire input

Shape
Rectangular machine body

Phase
Three Phase

Product Type
Wire Nail Making Machine

General Use
Manufacturing of steel wire nails

Material
Cast Iron and Mild Steel

Type
Nail Making Machine

Capacity
100 to 500 kg per hour, depending on model

Weight (kg)
900 to 1200 kg approx.

Computerized
No

Automatic
Yes

Touch Screen
No

Control System
Manual/Automatic (Electric panel based)

Surface Treatment
Paint Coated

QC System
Standard quality control measures applied

Tolerance
0.1 mm

Drawing
As per standard design, available on request

Voltage
380V / 415V, 3 Phase, 50Hz

Dimension (L*W*H)
1800 mm x 1100 mm x 1300 mm (approx.)

Feature
High efficiency, Sturdy construction, Low maintenance

Color
Green (Standard), Custom available

Motor Power
3 HP to 7.5 HP, depending on model and output

Application
For making common wire nails used in construction, carpentry, and general fastening

After Sales Support
Available across Karnataka

Installation
Floor mounted

Production Speed
200 to 400 nails per minute (subject to wire gauge and nail size)

Nail Length Range
1 inch to 4 inch

Spare Parts Included
Cutter, Die, Punch, Springs for one set

Noise Level
Low noise operation

Operating Temperature
5°C to 45°C

Wire Feeding
Fully automatic wire feeder

Lubrication System
Automatic centralized lubrication system

About 1 To 4 Inch Wire Nail Making Machine in Karnataka

The Nails Manufacturing Machine from Gujarat Wire Products is a high-speed, precision-engineered machine designed for efficient nail production. It is built with durable components to ensure smooth operation and long-term reliability.Key Features: High-Speed Production: Capable of manufacturing a large volume of nails with minimal downtime. Durable Build: Made from high-quality materials for enhanced longevity and performance. Easy Operation: User-friendly design with simple controls for efficient operation. Low Maintenance: Engineered to reduce wear and tear, ensuring low maintenance costs. Versatile Application: Suitable for producing various nail sizes and types.Would you like specifications, pricing, or any additional details?

High-Speed Nail Production

Achieve efficient and continuous nail manufacturing with a capacity ranging from 100 to 500 kg per hour. The automatic wire feeder and advanced lubrication ensure minimal downtime, allowing consistent production of high-quality nails used in construction and various fastening applications.

Durable and Low Maintenance Design

Constructed from robust cast iron and mild steel, this machine is engineered for longevity. The automatic centralized lubrication system and sturdy design minimize maintenance, promoting a smooth workflow with low noise and reliable output.

Customizable for Your Needs

The machine offers customizable features including paint color and drawing specifications to meet particular requirements. With standard dimensions and thoughtful design, it's an adaptable solution for diverse manufacturing environments.

FAQ's of 1 To 4 Inch Wire Nail Making Machine in Karnataka:

Q: How does the wire nail making process work in this machine?

A: The machine automatically feeds wire through a fully automatic wire feeder, cuts and shapes nails of specified lengths (1 to 4 inch) with precise cutters and dies, and forms the nail heads using punches. It operates at high speed, producing up to 400 nails per minute depending on the wire gauge and desired nail size.

Q: What are the main applications for the nails produced by this machine?

A: Nails produced are commonly used in construction, carpentry, and general fastening tasks. Their robust quality makes them suitable for securing wood, joining components, and general industrial use.

Q: When is after-sales support available for this machine in Karnataka?

A: After-sales support is available across Karnataka through the manufacturer, supplier, or trader. This includes assistance with installation, troubleshooting, routine maintenance, and supply of spare parts.

Q: Where can this machine be installed and operated?

A: The machine is designed for indoor installation on a floor-mounted base. It operates efficiently in typical manufacturing environments with temperatures ranging from 5C to 45C and requires a three-phase power supply.

Q: What are the maintenance requirements and included spare parts?

A: Routine maintenance is minimized by the automatic centralized lubrication system. One set of essential spare parts, including the cutter, die, punch, and springs, is supplied with the machine to ensure uninterrupted operation.

Q: What are the benefits of using this wire nail making machine?

A: Key benefits include high efficiency, sturdy construction, low noise operation, reduced maintenance, and user-friendly controls. Its high production speed and precise tolerance help maximize productivity and output quality.
