1 To 4 Inch Wire Nail Making Machine in Haryana

1 To 4 Inch Wire Nail Making Machine in Haryana Specification

Shape
Rectangular Base, Compact Structure

Diameter
1 to 6 mm

Phase
Three Phase

Torque
High Torque Motorized Drive

Product Type
Wire Nail Making Machine

General Use
For manufacturing various sizes of wire nails

Material
Mild Steel Body with Hardened Tooling

Type
Nail Producing Machinery

Capacity
350 to 450 kg/shift

Weight (kg)
1400 kg (Approx.)

Computerized
No

Automatic
Semi-Automatic

Touch Screen
No

Control System
Manual Lever Operated

Surface Treatment
Paint Coated

QC System
In-process Checking & Final Output Inspection

Tolerance
0.05 mm

Drawing
Mechanical with Wire Feeding System

Voltage
380V/415V, 3 Phase

Dimension (L*W*H)
1600 mm x 1200 mm x 1300 mm

Feature
Low noise, Sturdy design, Energy efficient

Color
Blue/Green

Replacement Parts Availability
Yes

Nail Head Formation
Automatic

Wire Diameter Range
1 mm to 6 mm

Nail Cutting System
Rotary Cutter with Hardened Blades

Power Consumption
2.2 kW

Motor Power
3 HP

Working Temperature Range
5°C to 45°C

Application
Construction, Carpentry, Furniture Making

Production Range Length
1 inch to 4 inch nails

Operator Required
One Skilled Operator

Maintenance
Easy Maintenance Design

Noise Level
< 80 db

Lubrication System
Automatic Oil Bath

Output Per Minute
200-350 nails/minute

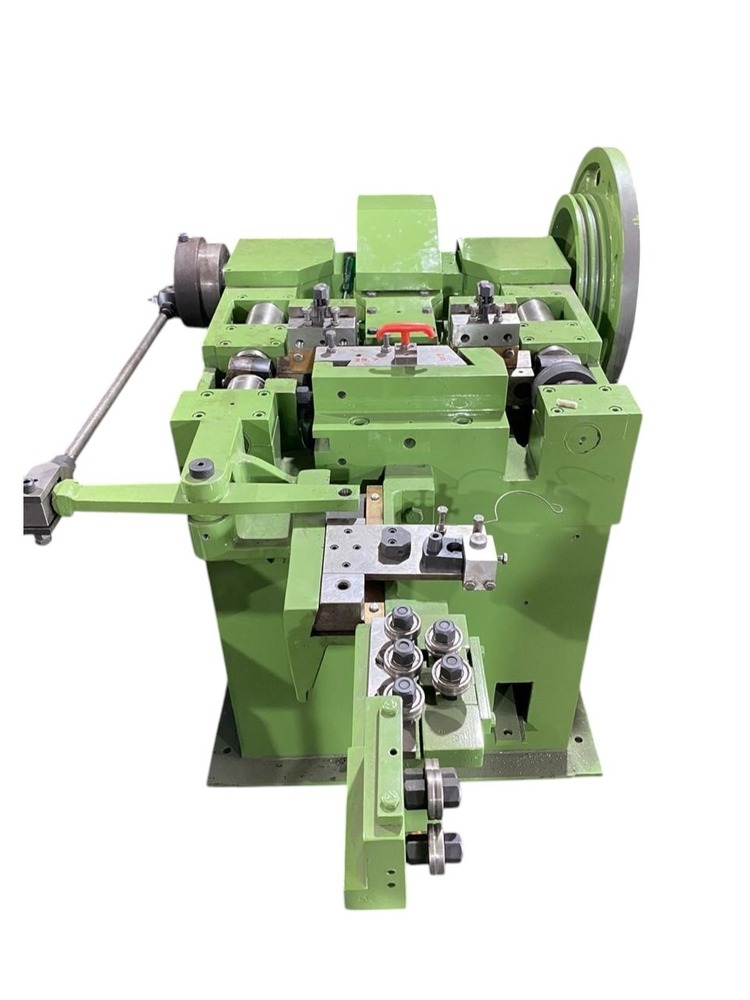

About 1 To 4 Inch Wire Nail Making Machine in Haryana

The Nails Manufacturing Machine from Gujarat Wire Products is a high-speed, precision-engineered machine designed for efficient nail production. It is built with durable components to ensure smooth operation and long-term reliability.Key Features: High-Speed Production: Capable of manufacturing a large volume of nails with minimal downtime. Durable Build: Made from high-quality materials for enhanced longevity and performance. Easy Operation: User-friendly design with simple controls for efficient operation. Low Maintenance: Engineered to reduce wear and tear, ensuring low maintenance costs. Versatile Application: Suitable for producing various nail sizes and types.Would you like specifications, pricing, or any additional details?

Superior Performance & Versatile Production

Designed to fabricate wire nails ranging from 1 inch to 4 inches, this machine efficiently meets diverse industry needs. Its mechanical wire feeding system and high-torque motor drive allow for a steady output, while automatic nail head formation and rotary cutting ensure uniformity and quality in each batch.

User-Friendly and Durable Design

Featuring a semi-automatic operation with manual lever controls, a single skilled operator can manage the entire process with ease. The machine's sturdy mild steel construction, paint-coated exterior, and advanced lubrication system contribute to its durability and longevity, minimizing downtime and facilitating straightforward maintenance.

Energy Efficient and Low Environmental Impact

Operating at 2.2 kW power consumption with a noise level below 80db, this wire nail maker is both cost-effective and environmentally considerate. Its efficient oil bath lubrication reduces frictional losses, further enhancing its energy efficiency and operational safety for various manufacturing environments.

FAQ's of 1 To 4 Inch Wire Nail Making Machine in Haryana:

Q: How is the wire nail making process managed in this machine?

A: The machine automates nail head formation and uses a rotary cutter with hardened blades for precise nail cutting. Operators manually control the system via a lever, while mechanical wire feeding ensures consistent supply and production speed between 200-350 nails per minute.

Q: What are the primary applications for the nails produced by this machine?

A: Nails made using this equipment are ideal for construction projects, carpentry work, and manufacturing furniture. The machine accommodates nail lengths from 1 to 4 inches and wire diameters from 1 mm to 6 mm, supporting multiple industrial and commercial needs.

Q: Where can replacement parts be sourced for the machine?

A: Replacement parts are readily available through the manufacturer, supplier, trader, or wholesaler in Haryana and across India, ensuring minimal downtime and continuity in production.

Q: What maintenance is required for the wire nail making machine?

A: Maintenance is straightforward thanks to its easy maintenance design. Regular checks of the automatic oil bath lubrication system, rotary cutter blades, and wire feeding system are recommended to ensure optimal operation and machine longevity.

Q: What kind of operator is needed to run the machine effectively?

A: A single skilled operator is sufficient to manage the machine's semi-automatic process using the manual lever controls. The clear interface and semi-automatic features reduce the level of training required.

Q: How energy efficient is the machine and what powers it?

A: The machine consumes only 2.2 kW of power and is driven by a 3 HP high-torque motor, making it highly energy efficient. It operates on a 3-phase power supply, 380V/415V, suitable for industrial settings.
